  •   -30%LG Compact inverter oro kondicionierius UT36F.NA0 komplekte UUC1.U40

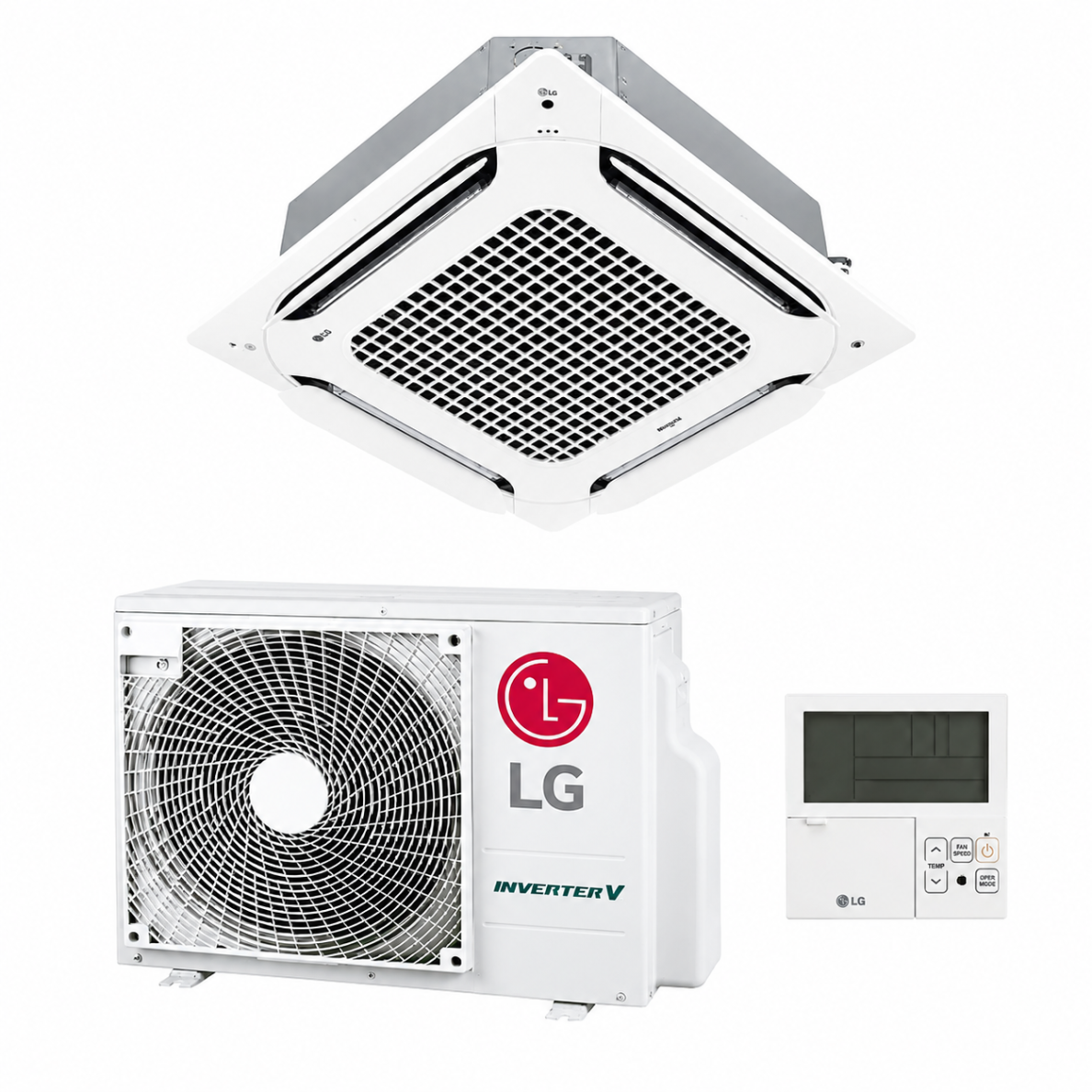

    LG Compact inverter oro kondicionierius UT36F.NA0 komplekte UUC1.U40

    Pasiteirauti apie prekę
    Kaina 2782.39 €
    3974.85 € Sutaupykite 1192.46 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Į krepšelį

  • Montavimas

    Atliekami montavimo darbai visoje Lietuvoje, prašome teirautis bendrais kontaktais.



    Komplektacija

    Prekės komplektą sudaro lauko blokas, vidaus blokas, valdymas.



    Katalogas, kainynas

    LG oro kondicionieriai katalogas kainynas, ATSIDARYTI.


    Vidaus blokas CT18F.NQ0 CT24F.NB0 UT30F.NB0 UT36F.NA0
    Lauko blokas UUA1.UL0 UUB1.U20 UUB1.U20 UUC1.U40
    Capacity Cooling Min. / Rated / Max. kW 1.80 / 5.00 / 5.50 2.70 / 6.80 / 7.50 3.00 / 7.50 / 8.30 3.80 / 9.50 / 10.80
    Heating Min. / Rated / Max. kW 2.10 / 5.20 / 5.70 3.00 / 7.50 / 8.60 3.20 / 7.90 / 8.70 4.30 / 10.80 / 11.70
    Power Input (Set) Cooling Min. / Rated / Max. kW 0.34 / 1.76 / 2.11 0.40 / 2.00 / 2.40 0.50 / 2.31 / 2.77 0.60 / 2.79 / 3.57
    Heating Min. / Rated / Max. kW 0.30 / 1.45 / 1.87 0.40 / 2.21 / 2.87 0.50 / 2.37 / 3.08 0.60 / 2.77 / 3.30
    Running Current Cooling / Heating Rated A 7.8 / 6.4 8.8 / 9.6 10.1 / 10.4 12.4 / 12.3
    EER / COP   kWh / kWh 2.85 / 3.60 3.40 / 3.39 3.25 / 3.34 3.40 / 3.90
    SEER / SCOP   kWh / kWh 6.3 / 3.9 7.0 / 4.2 6.8 / 4.2 6.7 / 4.3
    Pdesign Cooling @ 35°C   kW 5.0 6.8 7.5 9.5
    Heating @ -10°C   kW 2.8 4.1 4.1 5.6
    Seasonal Energy Label Cooling / Heating   - A++ / A A++ / A+ A++ / A+ A++ / A+
    Annual Energy Consumption Cooling / Heating   kWh 278 / 1,005 340 / 1,367 386 / 1,367 496 / 1,823
    Dehumidification Rate   l/h 1.8 2.6 3.1 2.5
    ODU Sound Pressure Level* Cooling / Heating Rated dB(A) 49 / 52 48 / 53 50 / 54 54 / 56
    ODU Sound Power Level Cooling Rated dB(A) 65 65 67 70
    Piping Connections Liquid / Gas   mm (inch) Ø6.35 (1/4) / Ø9.52 (3/8) Ø9.52 (3/8) / Ø15.88 (5/8) Ø9.52 (3/8) / Ø15.88 (5/8) Ø9.52 (3/8) / Ø15.88 (5/8)
    Connections Method   - Flared Flared Flared Flared
    Operation Range (Outdoor) Cooling Min. / Max. °C -10 ~ 50 -10 ~ 48 -10 ~ 48 -20 ~ 50
    Heating Min. / Max. °C -10 ~ 18 -15 ~ 18 -15 ~ 18 -15 ~ 18
    INDOOR CT18F.NQ0 CT24F.NB0 UT30F.NB0 UT36F.NA0
    Power Supply   Ø / V / Hz 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50
    Power Input (IDU) H / M / L W 30 / 26 / 22 36 / 26 / 21 40 / 33 / 26 60 / 50 / 45
    Air Flow Rate H / M / L m³/min 13 / 12 / 11 18 / 15.5 / 14 19 / 17 / 15.5 27.5 / 25 / 22.5
    Dimensions Body W x H x D mm 570 x 256 x 570 840 x 204 x 840 840 x 204 x 840 840 x 288 x 840
    Weight Body   kg 13.9 21.1 21.1 25.3
    Sound Pressure Level* Cooling H / M / L dB(A) 41 / 39 / 37 38 / 36 / 34 40 / 37 / 35 44 / 42 / 41
    Sound Power Level Cooling Max. dB(A) 57 53 57 61
    Piping Connections Drain O.D. / I.D. mm Ø32.0 / 25.0 Ø32.0 / 25.0 Ø32.0 / 25.0 Ø32.0 / 25.0
    OUTDOOR UUA1.UL UUB1.U20 UUB1.U20 UUC1.U40
    Power Supply   Ø / V / Hz 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50
    Circuit Breaker Min. A 15 20 20 25
    Power Supply Cable (Included Earth)   No x mm² 3C x 1.5 3C x 2.5 3C x 2.5 3C x 2.5
    Dimensions Net W x H x D mm 770 x 545 x 288 870 x 650 x 330 870 x 650 x 330 950 x 834 x 330
    Weight Net   kg 33.3 44.5 44.5 57.7
    Compressor Type   - Twin Rotary Twin Rotary Twin Rotary Twin Rotary
    Refrigerant Type / GWP (Global Warming Potential)   - R32 / 675 R32 / 675 R32 / 675 R32 / 675
    Precharged Amount / t-CO₂eq   kg 1.0 / 0.675 1.2 / 0.810 1.2 / 0.810 1.9 / 1.283
    Chargeless   m 7.5 10 10 20
    Additional Charging Volume   g/m 20 40 40 55
    Fan Air Flow Rate Rated m³/min x No. 28 x 1 50 x 1 50 x 1 58 x 1
    Total Piping Length Min. / Max. m 5 / 30 5 / 35 5 / 35 5 / 50
    Piping Elevation IDU - ODU Max. m 30 30 30 30
