  •   -37%LG lauko blokas MU3R21

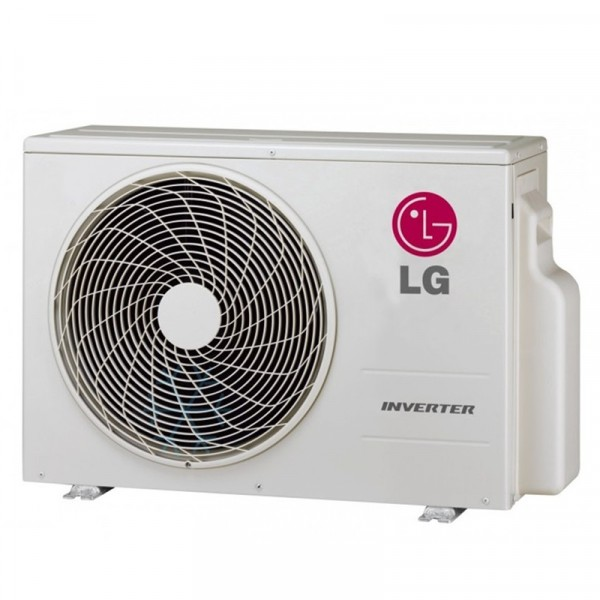

    LG lauko blokas MU3R21

    Pasiteirauti apie prekę
    Kaina 1628.27 €
    2584.56 € Sutaupykite 956.29 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Į krepšelį

  • Montavimas

    Atliekami montavimo darbai visoje Lietuvoje, prašome teirautis bendrais kontaktais.


    Komplektacija

    Prekės komplektą sudaro tik lauko blokas, o vidaus blokus jau reikia rinktis ir komplektuotis atskirai. LG multisplit lauko bloko modelio pirmas skaičius reiškia maksimalų vidaus blokų kiekį, t.y. jegu modelis MU5R30 vadinasi galima prijungti prie vieno lauko bloko maskimaliai 5 vnt. vidaus blokus.


    Katalogas, kainynas

    LG oro kondicionieriai katalogas kainynas, ATSIDARYTI.



    Outdoor units MU2R15 MU2R17 MU3R19 MU3R21 MU4R25 MU4R27 MU5R30
    Compressor Type Twin Rotary Twin Rotary Twin Rotary Twin Rotary Twin Rotary Twin Rotary Twin Rotary
    Capacity Cooling Min. / Nom. / Max. kW 0.9 / 4.1 / 4.7 0.9 / 4.7 / 5.4 1.1 / 5.3 / 6.3 1.1 / 6.2 / 7.3 1.1 / 7.0 / 8.5 1.3 / 7.9 / 9.5 1.3 / 8.8 / 10.6
    Heating Min. / Nom. / Max. kW 1.0 / 4.7 / 5.4 1.0 / 5.1 / 5.5 1.2 / 6.3 / 7.3 1.2 / 7.0 / 7.8 1.2 / 8.1 / 9.1 1.5 / 9.1 / 10.6 1.5 / 10.1 / 12.1
    Low Temperature Capacity Heating -7°C Max. kW 3.7 4.0 5.2 5.6 5.9 6.4 7.1
    Power Input Cooling Min. / Nom. / Max. kW 0.2 / 1.0 / 1.4 0.2 / 1.2 / 1.8 0.3 / 1.2 / 1.8 0.3 / 1.5 / 2.4 0.3 / 1.8 / 2.8 0.4 / 1.8 / 2.9 0.4 / 2.0 / 3.4
    Heating Min. / Nom. / Max. kW 0.2 / 1.1 / 1.5 0.2 / 1.2 / 1.5 0.3 / 1.3 / 1.9 0.3 / 1.6 / 2.2 0.3 / 1.8 / 2.9 0.6 / 2.1 / 3.4 0.6 / 2.2 / 3.6
    Running Current Cooling Min. / Nom. / Max. A 1.0 / 4.4 / 6.2 1.0 / 5.4 / 8.0 1.3 / 5.3 / 8.1 1.3 / 6.6 / 10.7 1.3 / 8.0 / 12.6 1.9 / 8.1 / 13.1 1.9 / 9.1 / 15.2
    Heating Min. / Nom. / Max. A 1.1 / 4.7 / 6.5 1.1 / 5.3 / 6.7 1.2 / 5.9 / 8.6 1.2 / 6.9 / 9.8 1.3 / 8.3 / 12.9 2.8 / 9.4 / 15.3 2.8 / 9.7 / 16.3
    EER 4.10 3.84 4.43 4.15 4.00 4.39 4.40
    COP 4.40 4.25 4.80 4.51 4.40 4.39 4.70
    SEER 8.60 8.50 8.60 8.50 8.00 8.00 8.20
    SCOP 4.61 4.61 4.65 4.65 4.40 4.30 4.30
    Pdesign (@-10°C) kW 3.60 3.60 5.00 5.00 5.40 7.00 7.40
    Seasonal Energy Label Cooling / Heating (A+++ to D Scale) A+++ / A++ A+++ / A++ A+++ / A++ A+++ / A++ A++ / A+ A++ / A+ A++ / A+
    Annual Energy Consumption Cooling / Heating 167 / 1,095 193 / 1,095 215 / 1,505 253 / 1,505 308 / 1,718 346 / 2,214 376 / 2,344
    Airflow Rate Nom. m³/min 35 35 50 50 50 60 60
    Sound Pressure Cooling Nom. dB(A) 45 46 47 48 49 48 49
    Heating Nom. dB(A) 48 49 50 51 53 52 53
    Sound Power Cooling Max. dB(A) 60 61 61 62 64 64 64
    Dimensions W x H x D mm 770 x 545 x 288 770 x 545 x 288 870 x 650 x 330 870 x 650 x 330 870 x 650 x 330 950 x 834 x 330 950 x 834 x 330
    Net Weight Kg 32.5 32.5 44.5 44.5 47.0 63.5 64.1
    Refrigerant Type R32 R32 R32 R32 R32 R32 R32
    Charge Kg 1.04 1.04 1.40 1.40 1.40 2.3 2.6
    Additional Charge g/m     20 20 20 20 20
    GWP 675 675 675 675 675 675 675
    t-CO2 eq 0.702 0.702 0.945 0.945 0.945 1.553 1.755
    Operation Range (Outdoor) Cooling Min. / Max. °C DB -10 / 48 -10 / 48 -10 / 48 -10 / 48 -10 / 48 -10 / 48 -10 / 48
    Heating Min. / Max. °C WB -15 / 18 -15 / 18 -15 / 18 -15 / 18 -18 / 18 -18 / 18 -18 / 18
    Power Supply Ø / V / Hz 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50
    Power Supply Cable No. x mm² 3C x 2.5 3C x 2.5 3C x 2.5 3C x 2.5 3C x 2.5 3C x 2.5 3C x 2.5
    Transmission Cable No. x mm²  4C x 0.75 4C x 0.75 4C x 0.75 4C x 0.75 4C x 0.75 4C x 0.75 4C x 0.75
    Circuit Breaker A 13 13 16 16 20 25 25
    Piping Length Total m 30 30 50 50 70 70 75
    Piping Length per Branch Max. m 20 20 25 25 25 25 25
    Piping Elevation Difference IDU - ODU Max. m 15 15 15 15 15 15 15
    IDU - IDU Max. m 7.5 7.5 7.5 7.5 7.5 7.5 7.5
    Piping Connection Liquid mm (inch) x No. Ø6.35 (1/4) x 2 Ø6.35 (1/4) x 2 Ø6.35 (1/4) x 3 Ø6.35 (1/4) x 3 Ø6.35 (1/4) x 4 Ø6.35 (1/4) x 4 Ø6.35 (1/4) x 5
    Gas mm (inch) x No. Ø9.52 (3/8) x 2 Ø9.52 (3/8) x 2 Ø9.52 (3/8) x 3 Ø9.52 (3/8) x 3 Ø9.52 (3/8) x 4 Ø9.52 (3/8) x 4 Ø9.52 (3/8) x 5
