Pradžia/PREKIŲ KATALOGAS/LG gamintojo įranga/LG split komerciniai oro kondicionieriai/LG sieniniai komerciniai SPLIT kondicionieriai, komplektai.
  •   -30%LG Standard inverter oro kondicionierius US36F.NR0 komplekte UUD3.U30

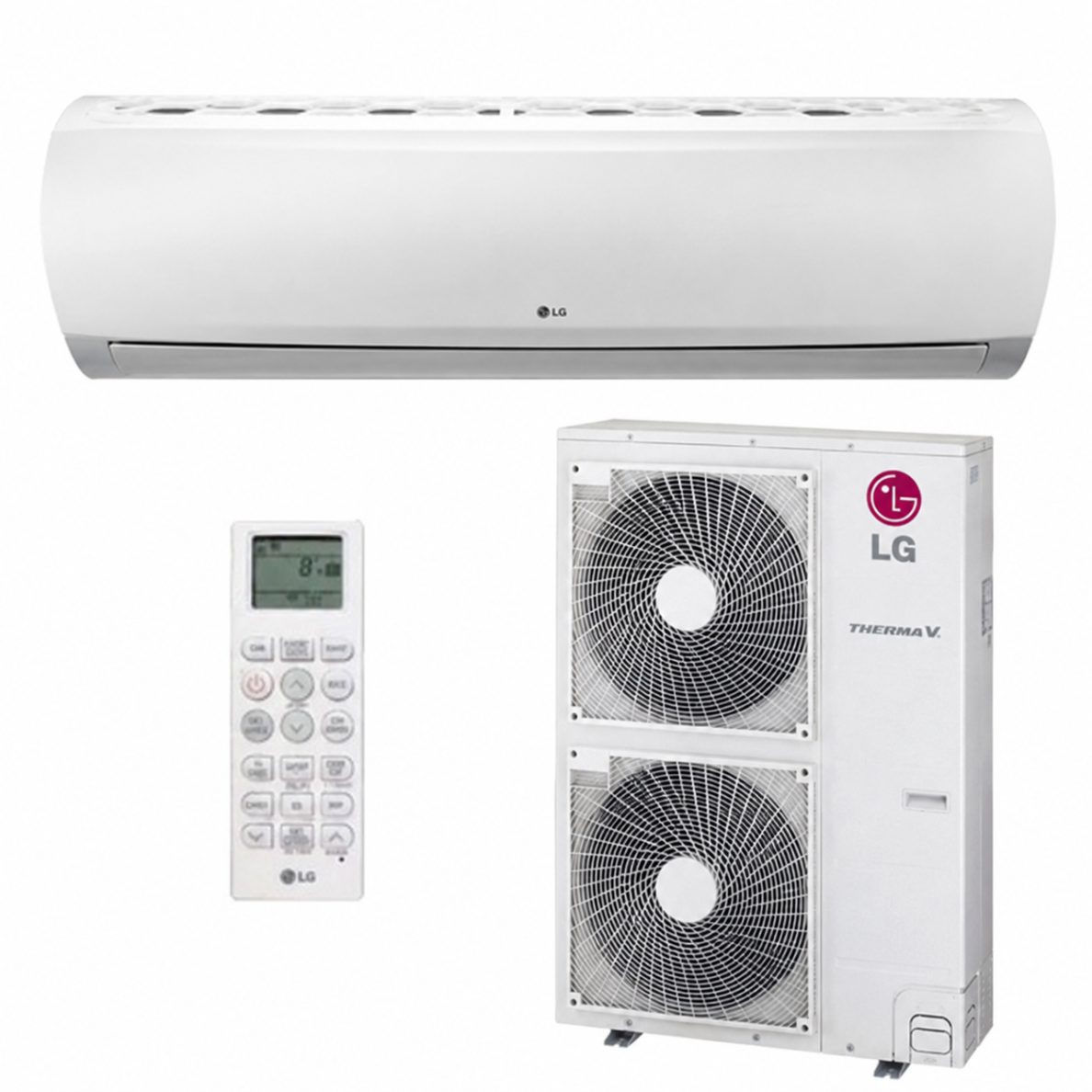

    LG Standard inverter oro kondicionierius US36F.NR0 komplekte UUD3.U30

    Pasiteirauti apie prekę
    Kaina 3355.81 €
    4794.02 € Sutaupykite 1438.21 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Į krepšelį

  • Montavimas

    Atliekami montavimo darbai visoje Lietuvoje, prašome teirautis bendrais kontaktais.



    Komplektacija

    Prekės komplektą sudaro lauko blokas, vidaus blokas, valdymas.



    Katalogas, kainynas

    LG oro kondicionieriai katalogas kainynas, ATSIDARYTI.


    Vidaus blokas US30F.NR0  US36F.NR0  US30F.NR0  US36F.NR0
    Lauko blokas UUC1.U40  UUD3.U30  UUB1.U20  UUC1.U40
    Capacity Cooling Min. / Rated / Max. kW 3.2 / 8.0 / 9.0 3.8 / 9.5 / 12.5 3.0 / 7.5 / 8.3 3.8 / 9.5 / 10.6
    Heating Min. / Rated / Max. kW 3.6 / 9.0 / 10.0 4.3 / 10.8 / 13.4 3.1 / 7.7 / 8.5 4.3 / 10.8 / 11.5
    Power Input (Set) Cooling Min. / Rated / Max. kW 0.50 / 2.28 / 3.17 0.30 / 2.57 / 3.91 0.50 / 2.31 / 2.77 0.60 / 3.06 / 3.67
    Heating Min. / Rated / Max. kW 0.50 / 2.5 / 3.20 0.50 / 2.77 / 3.77 0.40 / 2.14 / 2.78 0.60 / 3.0 / 3.72
    Running Current Cooling / Heating Rated A 10.1 / 11.1 4.1 / 4.4 10.1 / 9.3 13.6 / 13.3
    EER / COP   kWh / kWh 3.51 / 3.60 3.70 / 3.90 3.25 / 3.60 3.10 / 3.60
    SEER / SCOP   kWh / kWh 7.0 / 4.3 6.10 / 3.85 6.8 / 4.1 6.4 / 4.1
    Pdesign Cooling @ 35°C   kW 8 9.5 7.5 9.5
    Heating @ -10°C   kW 5.4 8.7 4.3 5.8
    Seasonal Energy Label Cooling / Heating   - A++ / A+ A++ / A A++ / A+ A++ / A+
    Annual Energy Consumption Cooling / Heating   kWh 400 / 1,758 545 / 3,164 386 / 1,468 520 / 1,980
    Dehumidification Rate   l/h 2.9 3.8 3.0 3.5
    ODU Sound Pressure Level* Cooling / Heating Rated dB(A) 50 / 52 50 / 50 50 / 54 54 / 56
    ODU Sound Power Level Cooling Rated dB(A) 68 66 67 70
    Piping Connections Liquid / Gas   mm (inch) Ø9.52 (3/8) / Ø15.88 (5/8) Ø9.52 (3/8) / Ø15.88 (5/8) Ø9.52 (3/8) / Ø15.88 (5/8) Ø9.52 (3/8) / Ø15.88 (5/8)
    Connections Method   - Flared Flared Flared Flared
    Operation Range (Outdoor) Cooling Min. / Max. °C -20 ~ 50 -20 ~ 52 -10 ~ 48 -20 ~ 50
    Heating Min. / Max. °C -20 ~ 18 -25 ~ 18 -15 ~ 18 -15 ~ 18
    INDOOR US30F.NR0 US36F.NR0 US30F.NR0 US36F.NR0
    Power Supply   Ø / V / Hz 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50
    Power Input (IDU) H / M / L W 47 / 42 / 36 65 / 47 / 42 47 / 42 / 36 65 / 47 / 42
    Air Flow Rate H / M / L m³/min 21 / 17 / 13 25 / 21 / 17 21 / 17 / 13 25 / 21 / 17
    Dimensions Body W x H x D mm 1,200 x 360 x 265 1,200 x 360 x 265 1,200 x 360 x 265 1,200 x 360 x 265
    Weight Body   kg 18.3 18.3 18.3 18.3
    Sound Pressure Level* Cooling H / M / L dB(A) 46.0 / 42.0 / 38.0 51.0 / 46.0 / 42.0 46.0 / 42.0 / 38.0 51.0 / 46.0 / 42.0
    Sound Power Level Cooling Max. dB(A) 62 65 62 65
    Piping Connections Drain O.D. / I.D. mm Ø21.5 / 16.0 Ø21.5 / 16.0 Ø21.5 / 16.0 Ø21.5 / 16.0
    OUTDOOR UUC1.U40 UUD3.U30 UUB1.U20 UUC1.U40
    Power Supply   Ø / V / Hz 1 / 220-240 / 50 3 / 380-415 / 50 1 / 220-240 / 50 1 / 220-240 / 50
    Circuit Breaker Min. A 25 20 20 25
    Power Supply Cable (Included Earth)   No x mm² 3C x 2.5 5C x 2.5 3C x 2.5 3C x 2.5
    Dimensions Net W x H x D mm 950 x 834 x 330 950 x 1,380 x 330 870 x 650 x 330 950 x 834 x 330
    Weight Net   kg 57.7 85 44.5 57.7
    Compressor Type   - Twin Rotary Inverter Scroll Twin Rotary Twin Rotary
    Refrigerant Type / GWP (Global Warming Potential)   - R32 / 675 R32 / 675 R32 / 675 R32 / 675
    Precharged Amount / t-CO₂eq   kg 1.9 / 1.283 3.0 / 2.025 1.2 / 0.81 1.9 / 1.283
    Chargeless   m 20 20 10 20
    Additional Charging Volume   g/m 55 50 40 55
    Fan Air Flow Rate Rated m³/min x No. 58 x 1 55 x 2 50 x 1 58 x 1
    Total Piping Length Min. / Max. m 5 / 50 5 / 85 5 / 35 5 / 50
    Piping Elevation IDU - ODU Max. m 30 30 30 30
