  •   -30%LG Standart inverter oro kondicionierius UT48F.NY0 komplekte UUD3.U30

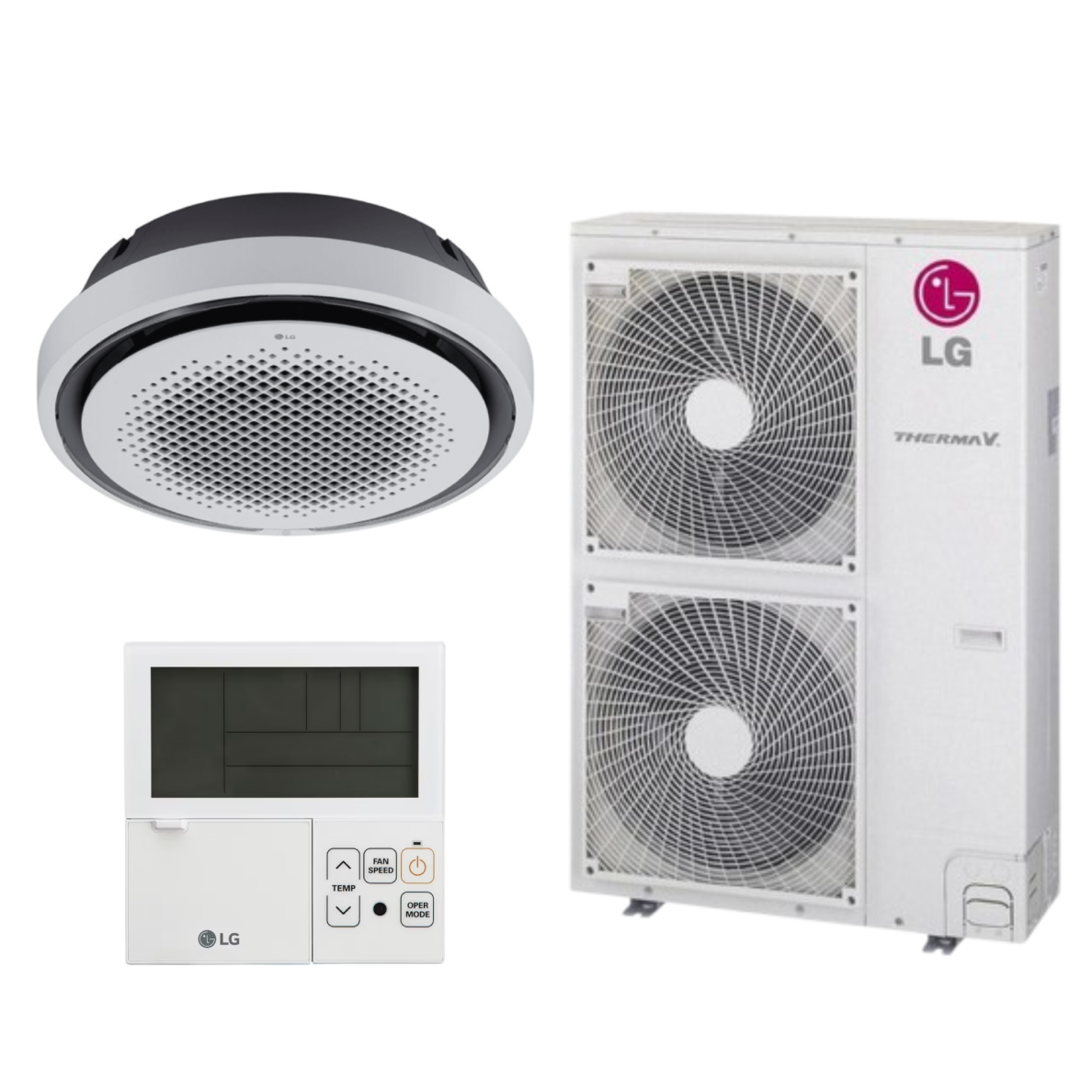

    LG Standart inverter oro kondicionierius UT48F.NY0 komplekte UUD3.U30

    Pasiteirauti apie prekę
    Kaina 4402.71 €
    6289.58 € Sutaupykite 1886.87 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Į krepšelį

  • Montavimas

    Atliekami montavimo darbai visoje Lietuvoje, prašome teirautis bendrais kontaktais.



    Komplektacija

    Prekės komplektą sudaro lauko blokas, vidaus blokas, valdymas.



    Katalogas, kainynas

    LG oro kondicionieriai katalogas kainynas, ATSIDARYTI.


    Vidaus blokas UT36F.NY0 UT48F.NY0
    Lauko blokas UUD3.U30 UUD3.U30
    Capacity Cooling Min. / Rated / Max. kW 3.80 / 11.00 / 12.54 5.40 / 13.40 / 15.68
    Heating Min. / Rated / Max. kW 4.30 / 12.20 / 13.39 6.20 / 15.50 / 17.52
    Power Input (Set) Cooling Min. / Rated / Max. kW 0.50 / 3.06 / 3.98 0.90 / 4.39 / 5.71
    Heating Min. / Rated / Max. kW 0.50 / 3.13 / 4.26 0.90 / 4.56 / 5.56
    Running Current Cooling / Heating Rated A 5.2 / 5.3 7.0 / 7.3
    EER / COP   kWh / kWh 3.60 / 3.90 3.05 / 3.40
    SEER / SCOP   kWh / kWh 6.8 / 4.3 6.5 / 4.3
    Pdesign Cooling @ 35°C   kW 11.0 13.4
    Heating @ -10°C   kW 9.0 9.0
    Seasonal Energy Label Cooling / Heating   - - / - - / -
    Annual Energy Consumption Cooling / Heating   kWh 566 / 2,931 1,237 / 2,931
    Dehumidification Rate   l/h 4.27 5.65
    ODU Sound Pressure Level* Cooling / Heating Rated dB(A) 50 / 50 52 / 53
    ODU Sound Power Level Cooling Rated dB(A) 66 69
    Piping Connections Liquid / Gas   mm (inch) Ø9.52 (3/8) / Ø15.88 (5/8) Ø9.52 (3/8) / Ø15.88 (5/8)
    Connections Method   - Flared Flared
    Operation Range (Outdoor) Cooling Min. / Max. °C -20 ~ 52 -20 ~ 52
    Heating Min. / Max. °C -25 ~ 18 -25 ~ 18
    INDOOR UT36F.NY0 UT48F.NY0
    Power Supply   Ø / V / Hz 1 / 220-240 / 50 1 / 220-240 / 50
    Power Input (IDU) H / M / L W 90 / 66 / 48 125 / 90 / 66
    Air Flow Rate H / M / L m³/min 25 / 21 / 19 29 / 25 / 21
    Dimensions Body W x H x D mm 1,050 x 330 x 1,050 1,050 x 330 x 1,050
    Weight Body   kg 30.0 30.0
    Sound Pressure Level* Cooling H / M / L dB(A) 44 / 40 / 38 47 / 44 / 40
    Sound Power Level Cooling Max. dB(A) 59 60
    Piping Connections Drain O.D. / I.D. mm Ø32.0 / 25.0 Ø32.0 / 25.0
    OUTDOOR UUD3.U30 UUD3.U30
    Power Supply   Ø / V / Hz 3 / 380-415 / 50 3 / 380-415 / 50
    Circuit Breaker Min. A 20 20
    Power Supply Cable (Included Earth)   No x mm² 5C x 2.5 5C x 2.5
    Dimensions Net W x H x D mm 950 x 1,380 x 330 950 x 1,380 x 330
    Weight Net   kg 85.0 85.0
    Compressor Type   - Inverter Scroll Inverter Scroll
    Refrigerant Type / GWP (Global Warming Potential)   - R32 / 675 R32 / 675
    Precharged Amount / t-CO₂eq   kg 3.0 / 2.025 3.0 / 2.025
    Chargeless   m 20 20
    Additional Charging Volume   g/m 50 50
    Fan Air Flow Rate Rated m³/min x No. 55 x 2 55 x 2
    Total Piping Length Min. / Max. m 5 / 85 5 / 85
    Piping Elevation IDU - ODU Max. m 30 30
